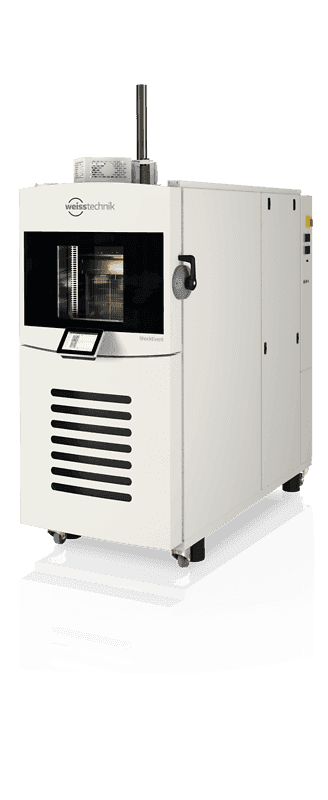

ShockEvent T/120/V2/P
In order to uncover latent weak points within a very short time, a normal temperature test is often not enough; Shock testing is a test in which samples are shocked. Shocking refers to temperature and means that a test specimen experiences a very rapid temperature change between two temperature extremes - the test material is exposed to a sudden change in temperature.
Product details
Technical data
External dimentions (HxWxD)
2450 x 1000 x 2805 mm
Test room dimensions (HxWxD)
410 x 470 x 650 mm
Test room volume
120 L
Maximum load per floor
4 kg
Temperature deviation, temporal
±0,3 bis ±1,0 K
Temperature deviation, spatial
±1,0 bis ±2,0 K
Temperature change rate, heating
2 K/min (heating chamber)
Temperature change rate, cooling
7,5 K/min (cooling chamber)
Supply voltage
3/N/PE AC 400 V ±10 % 50 Hz
Rated output
30 kW
Rated current
50 A
Plug
CEE-Plug, 63 A
On-Site protection
63 A gG
Download product data sheet
ShockEvent T/120/V2/P
In order to uncover latent weak points within a very short time, a normal temperature test is often not enough; Shock testing is a test in which samples are shocked. Shocking refers to temperature and means that a test specimen experiences a very rapid temperature change between two temperature extremes - the test material is exposed to a sudden change in temperature.
